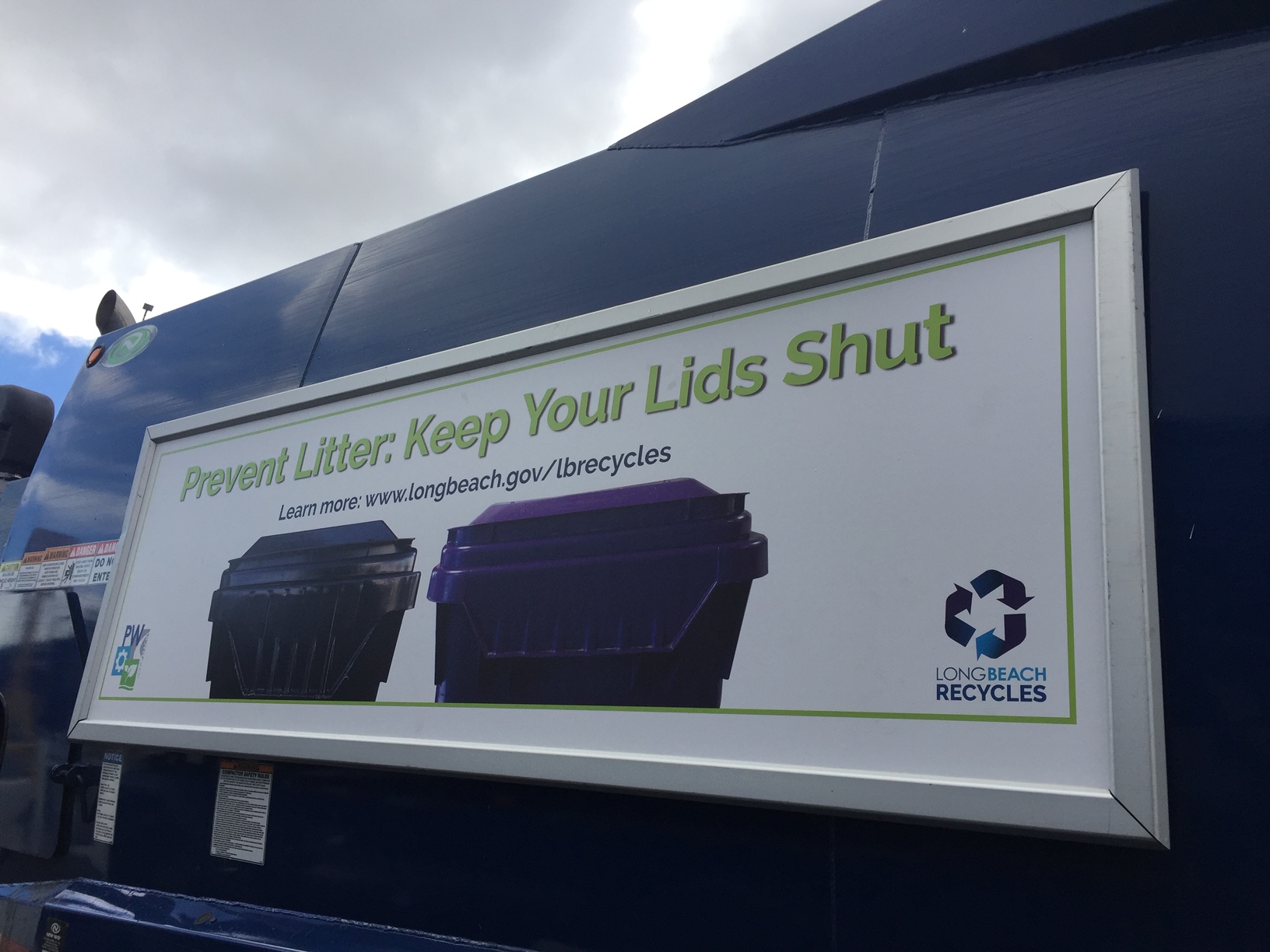

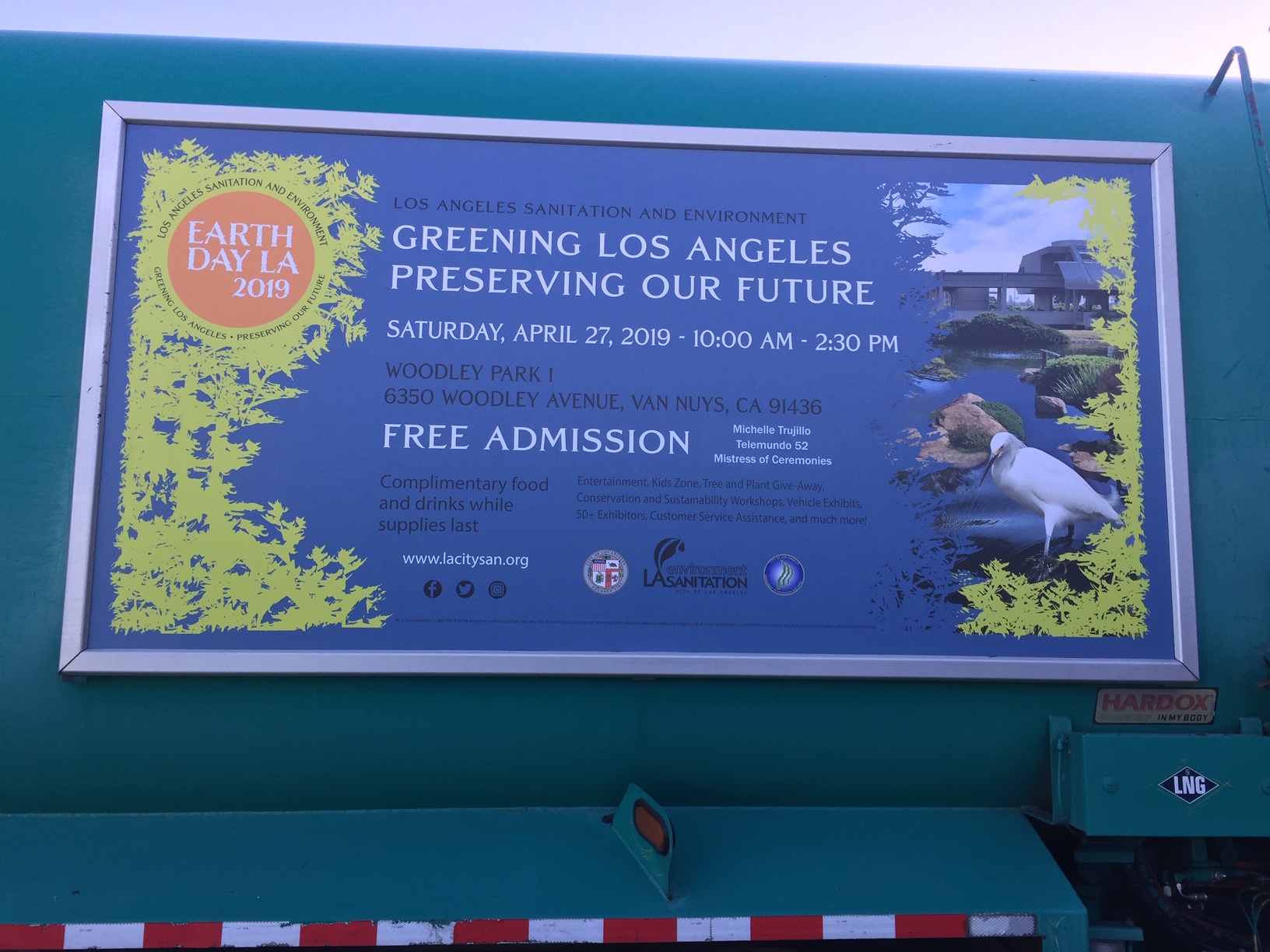

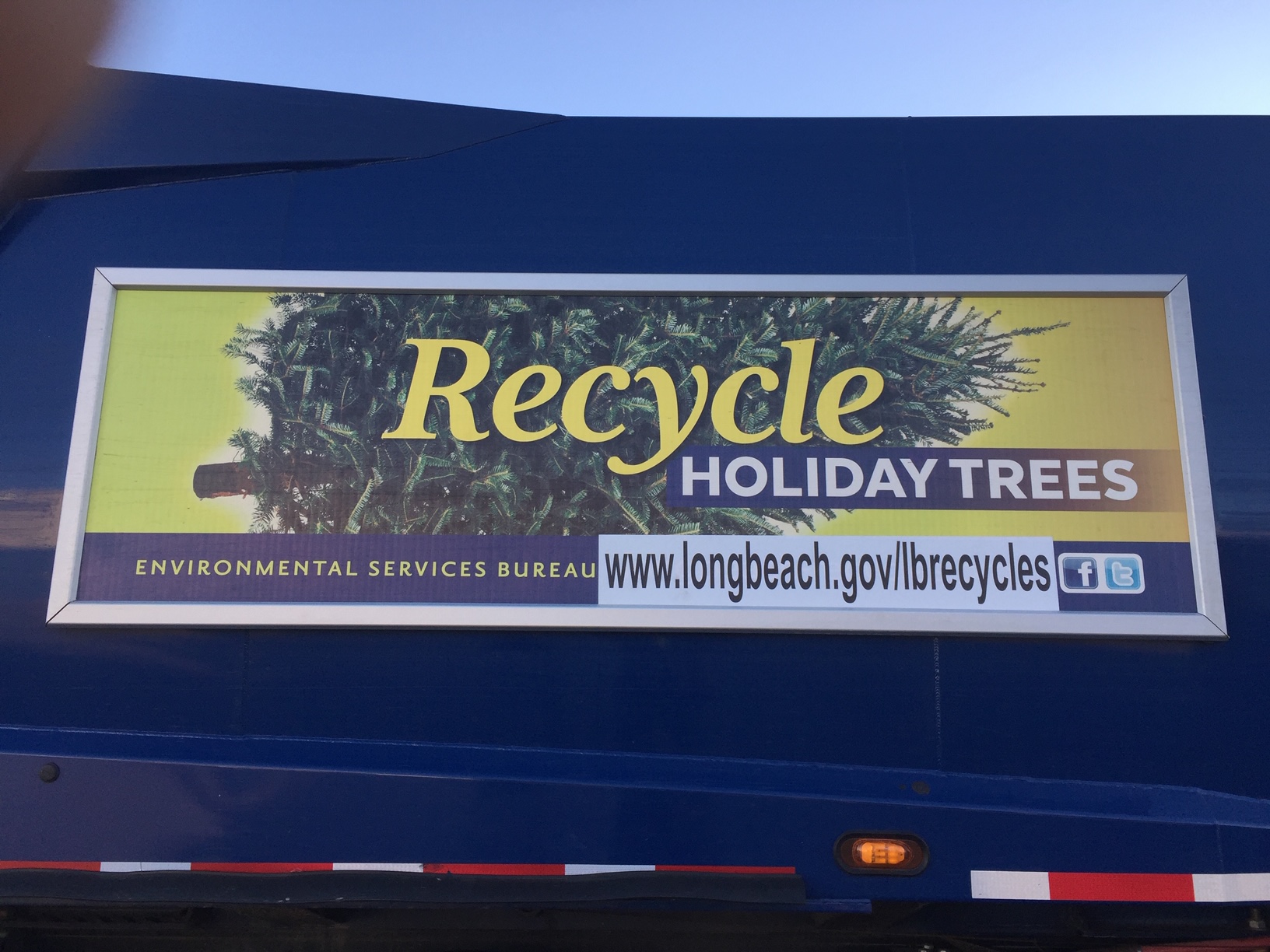

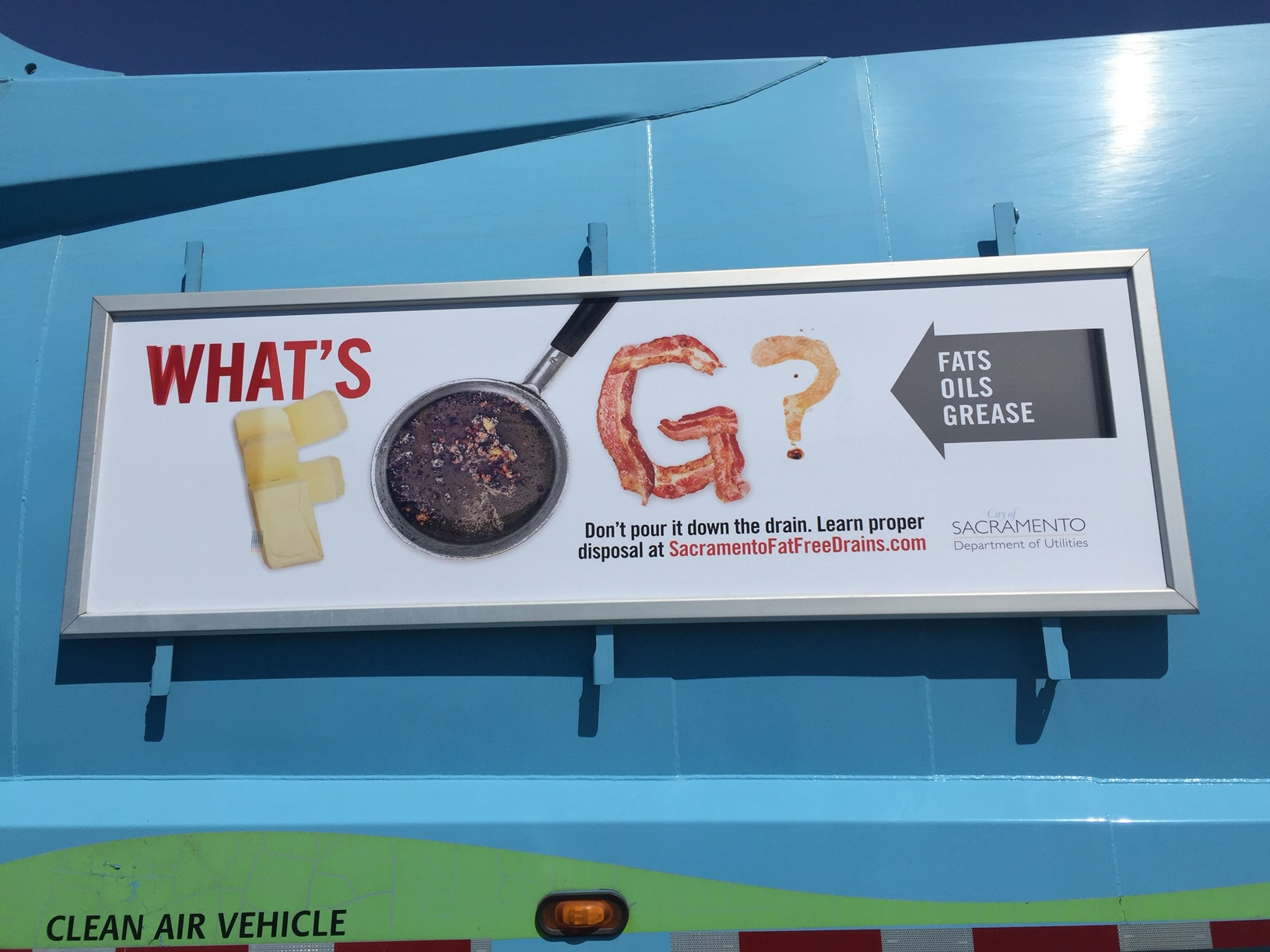

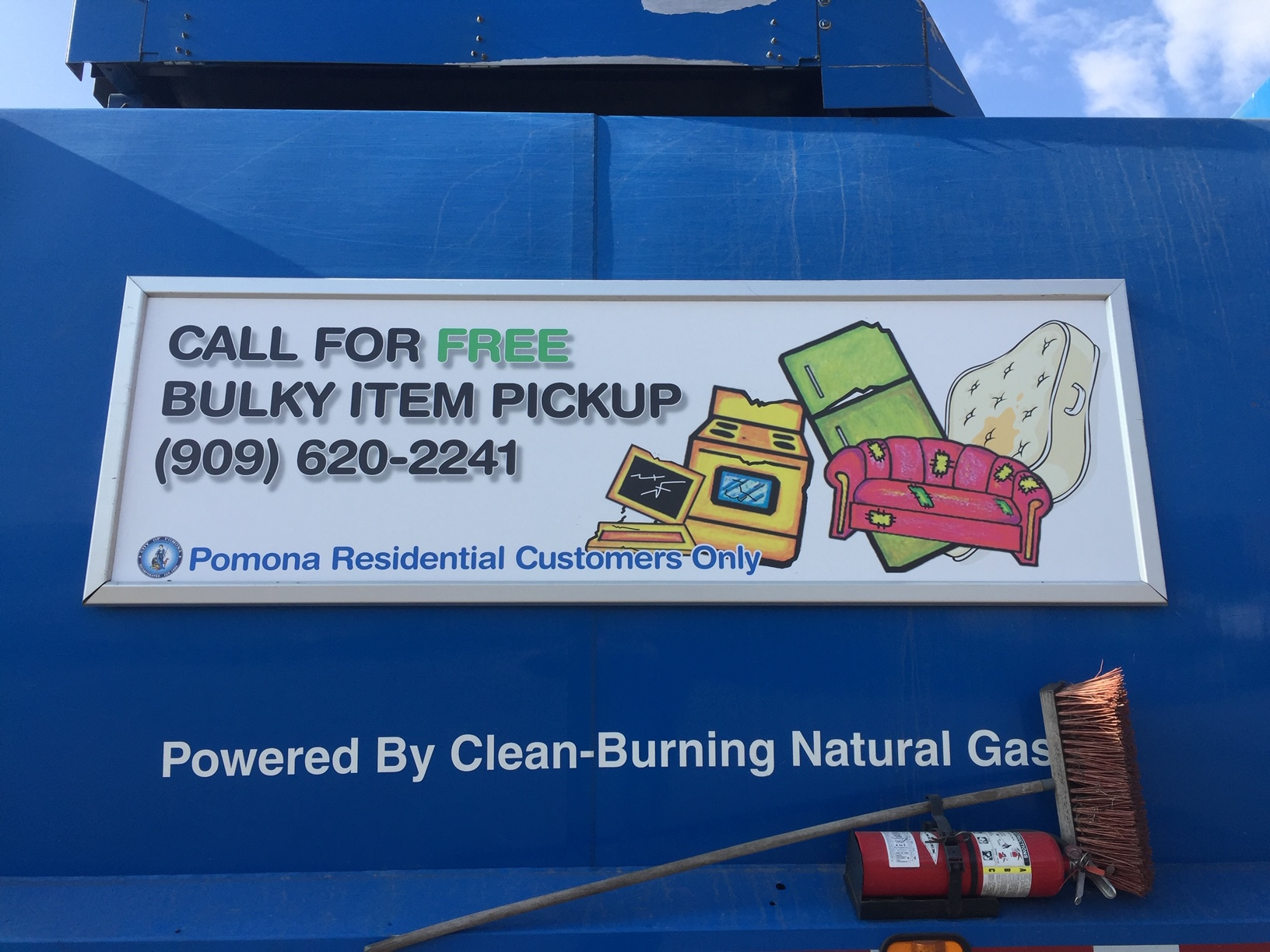

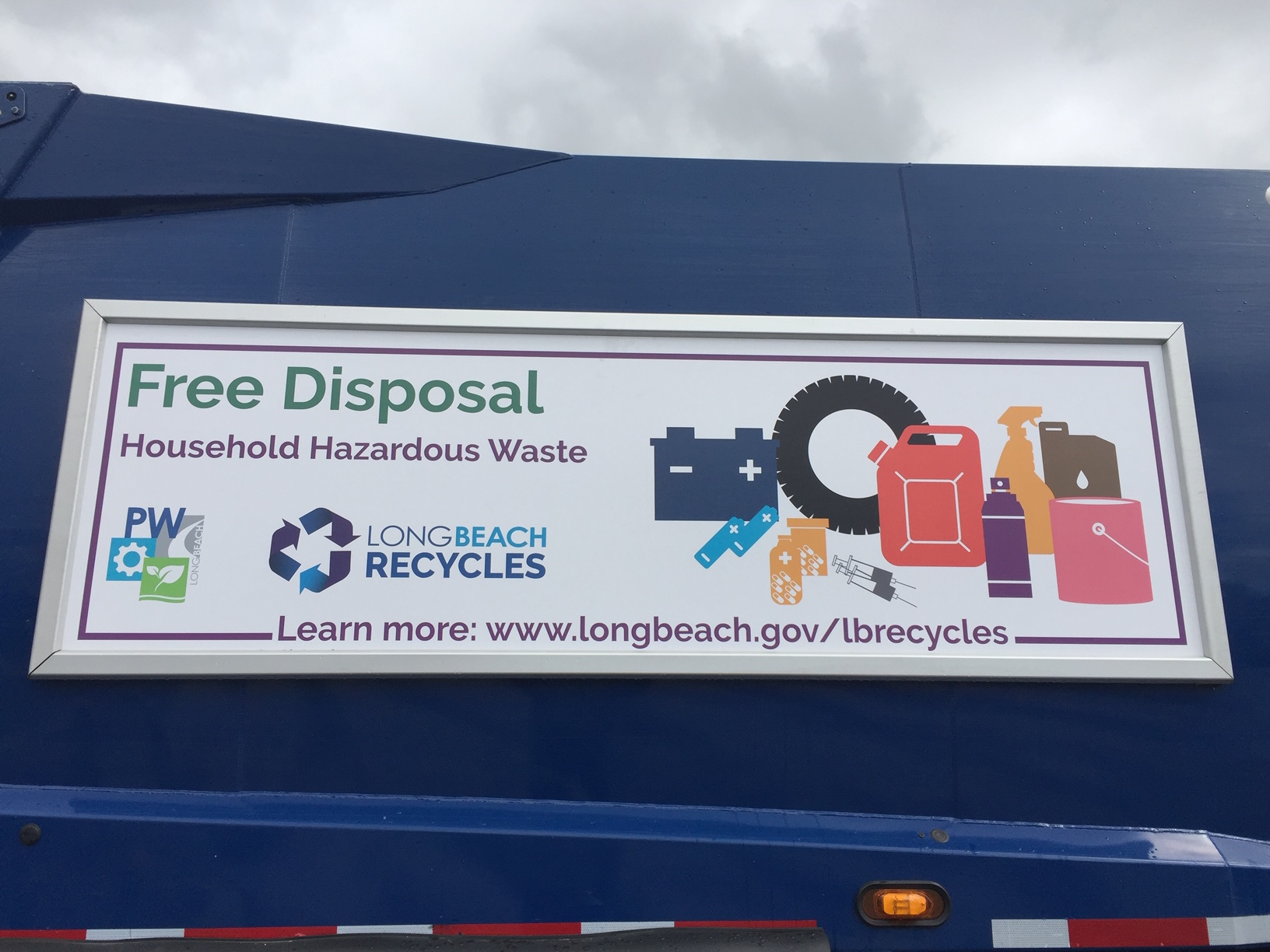

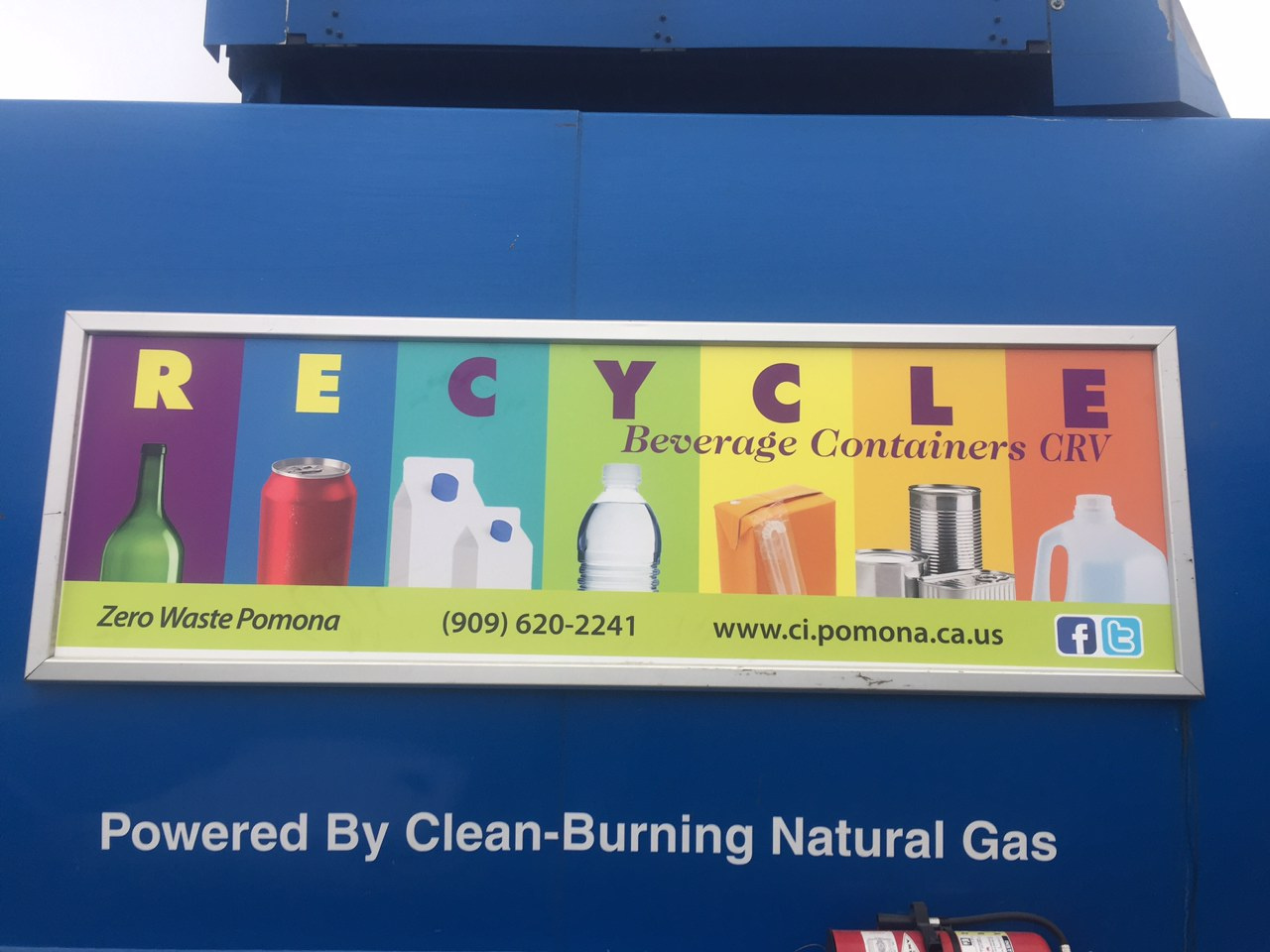

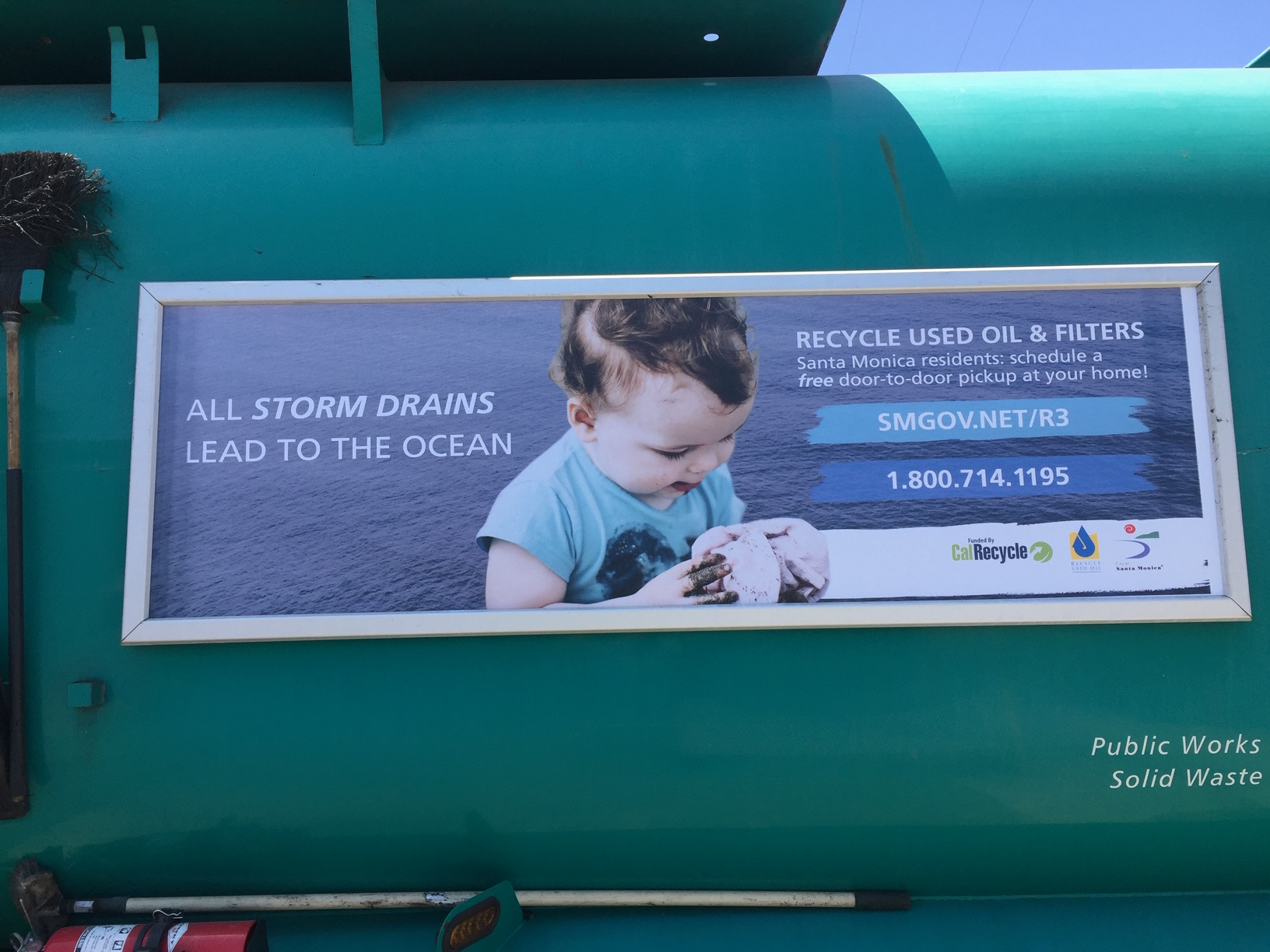

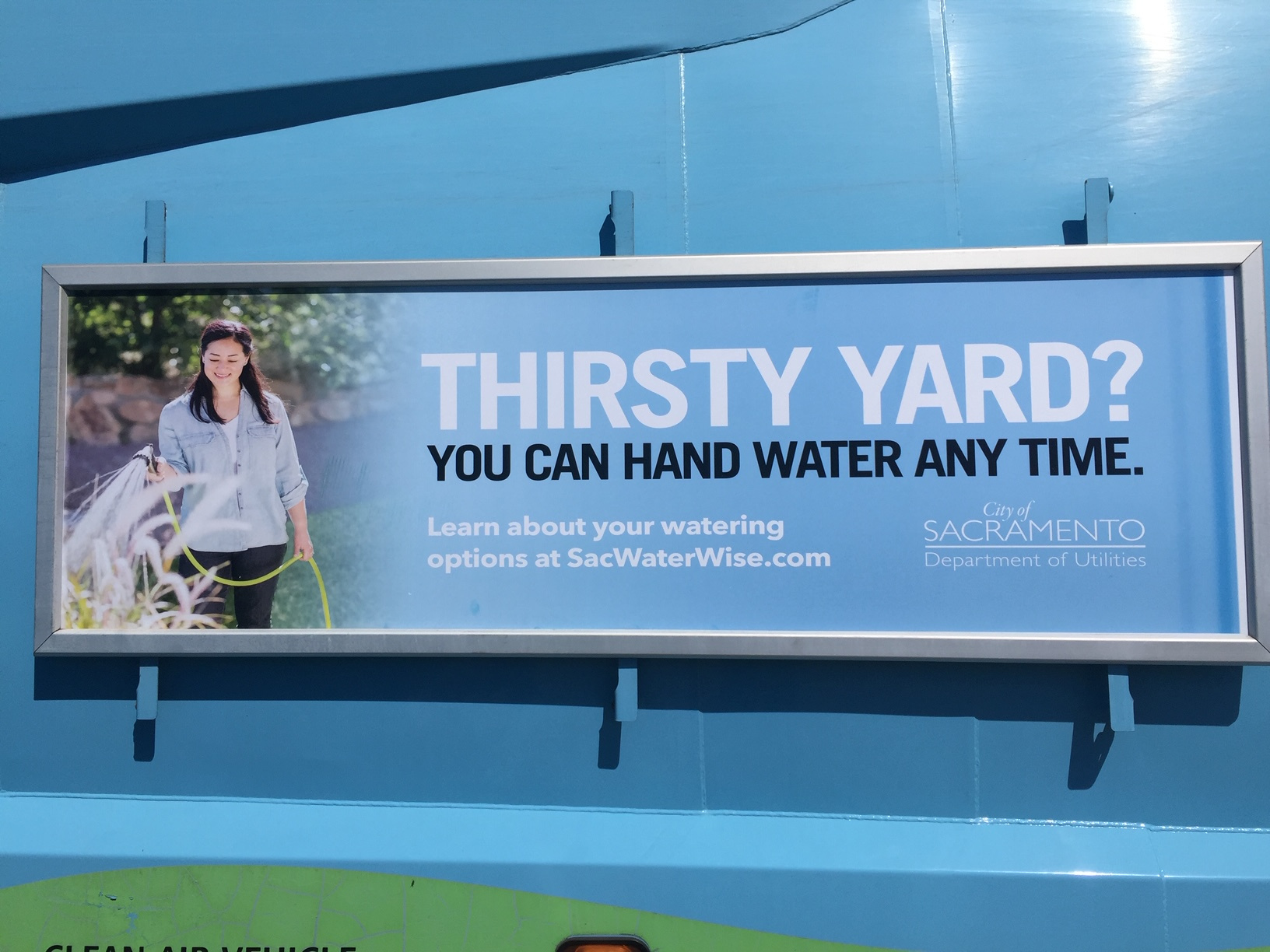

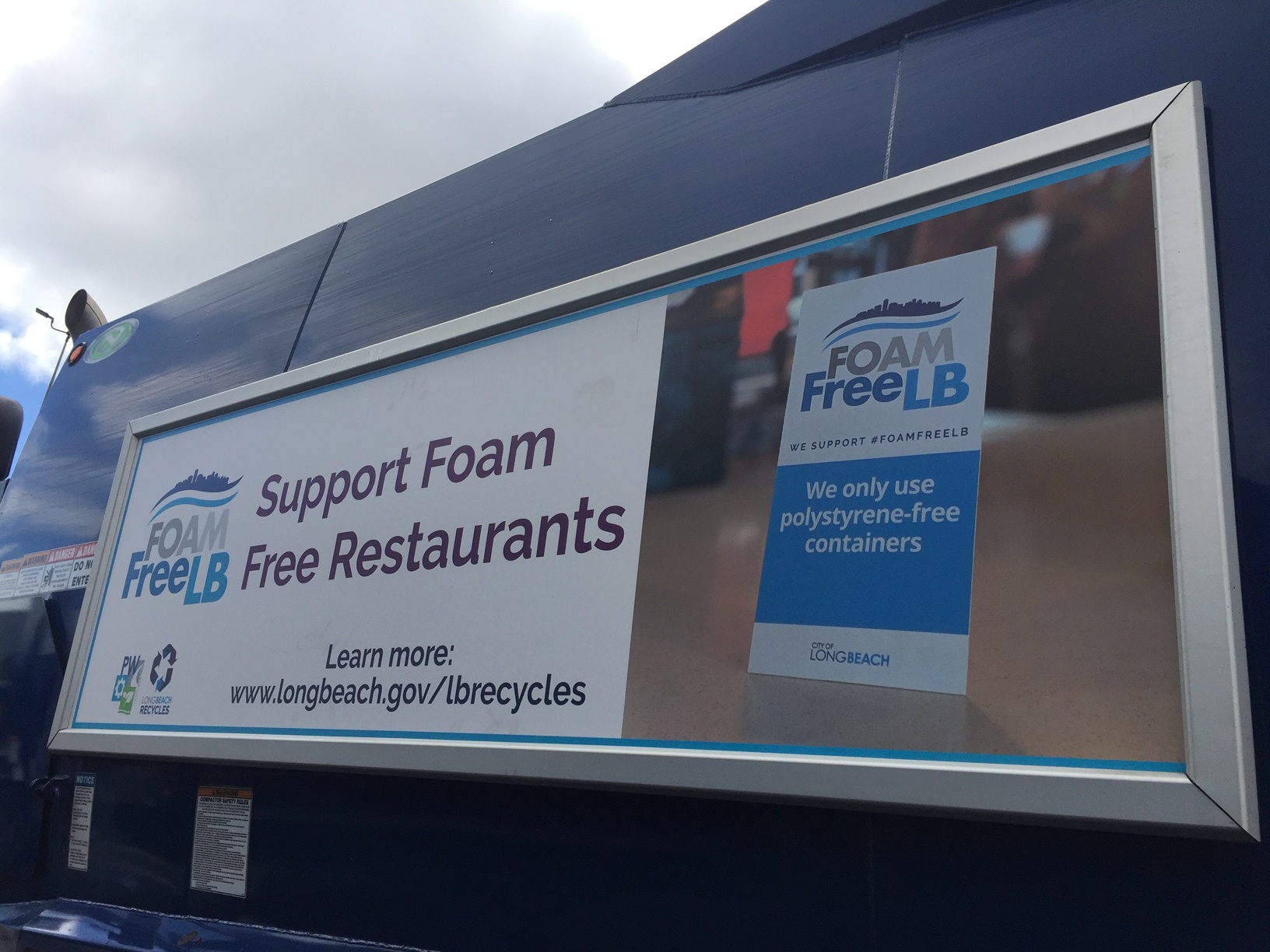

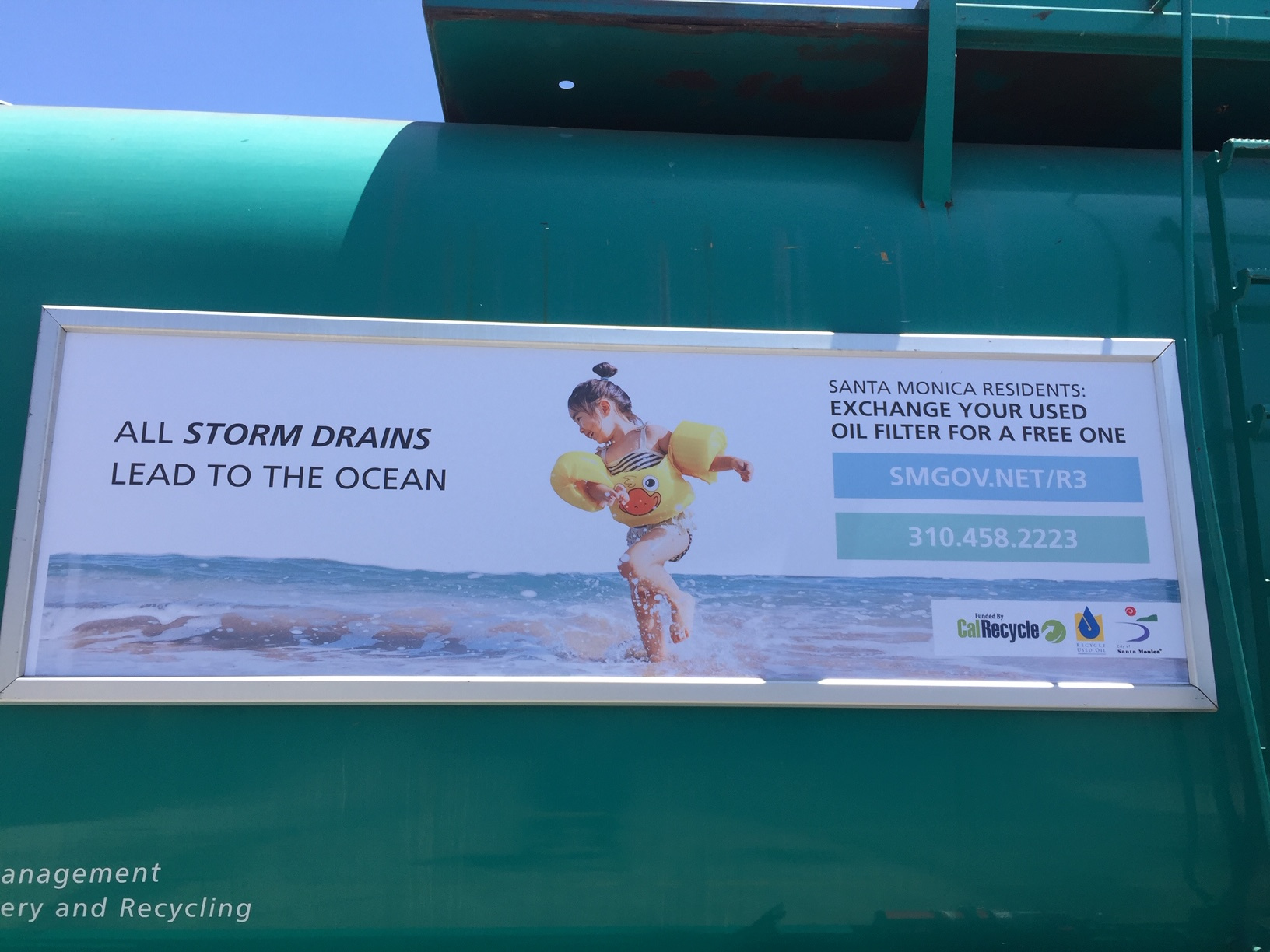

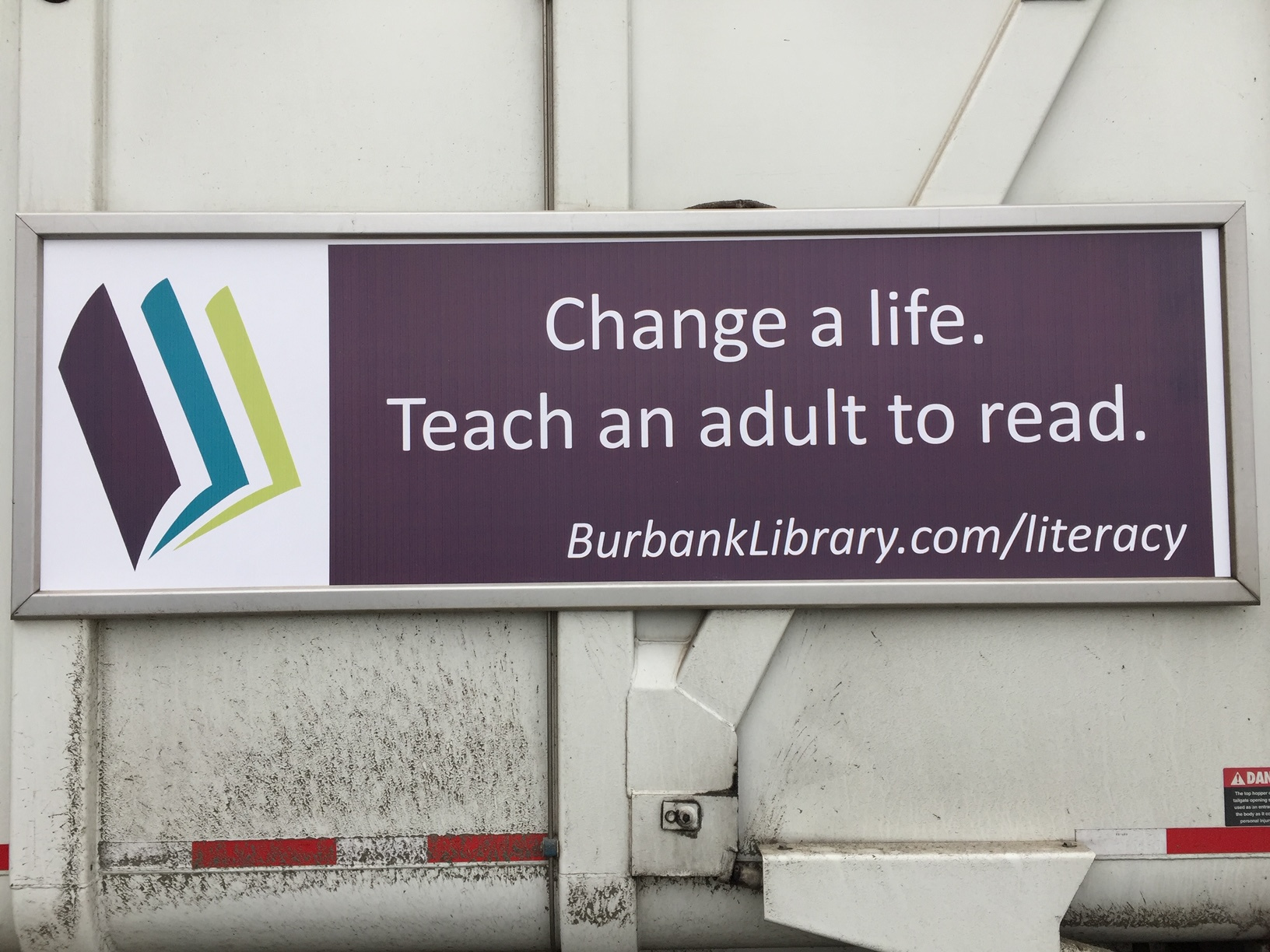

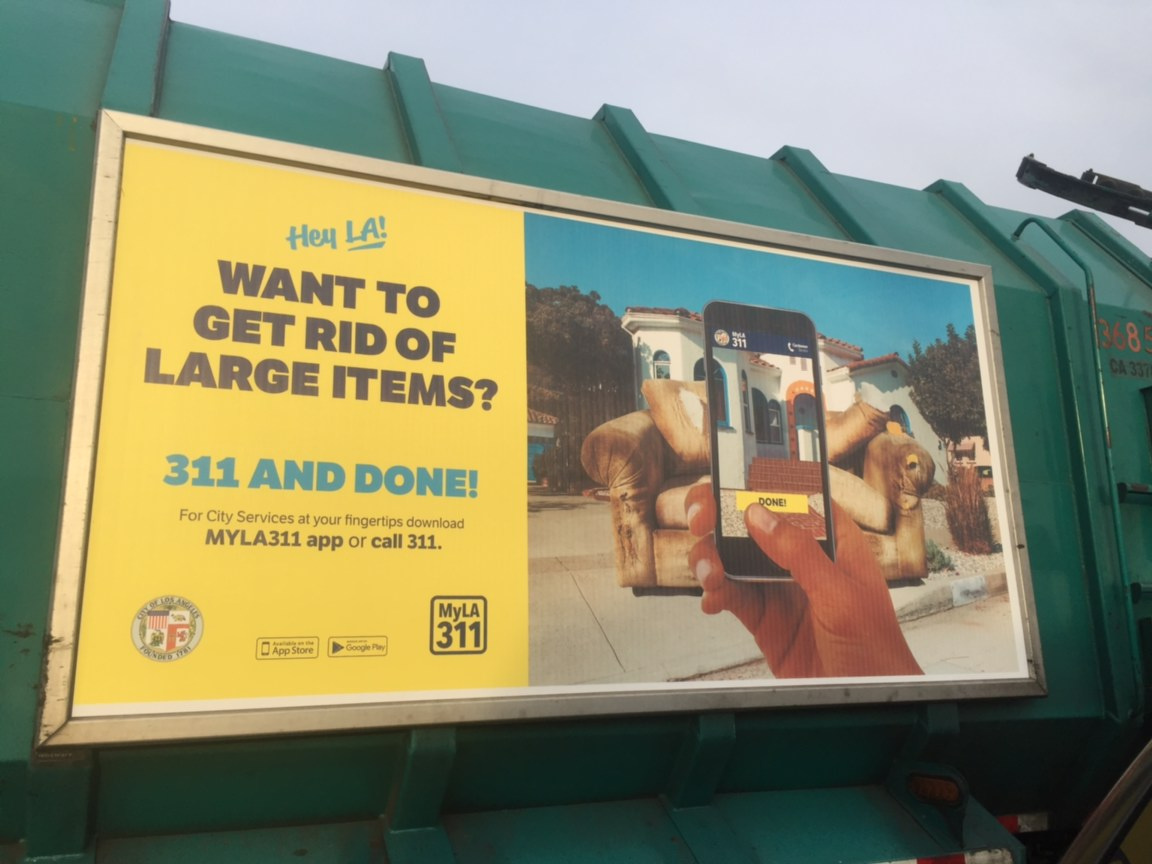

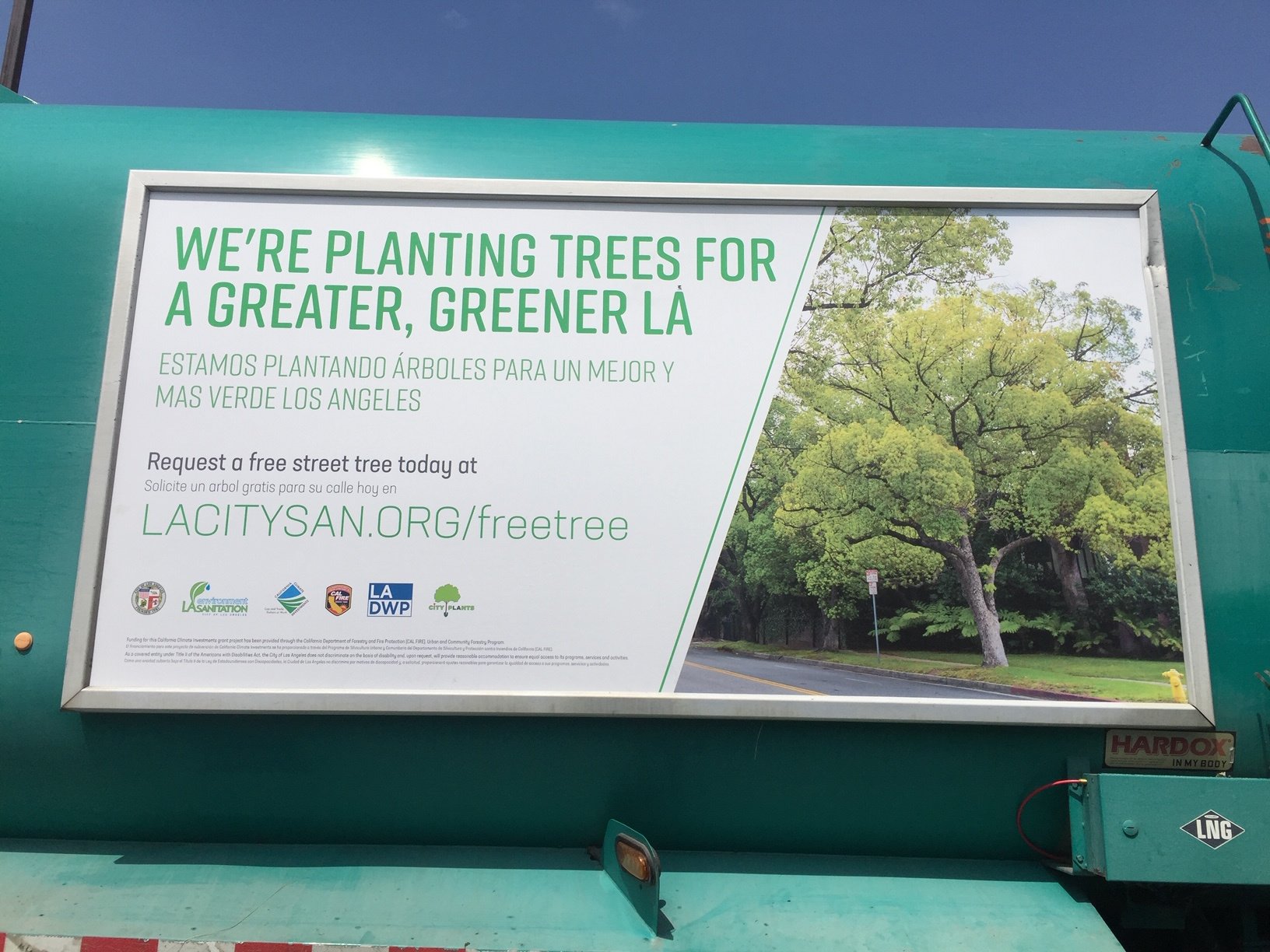

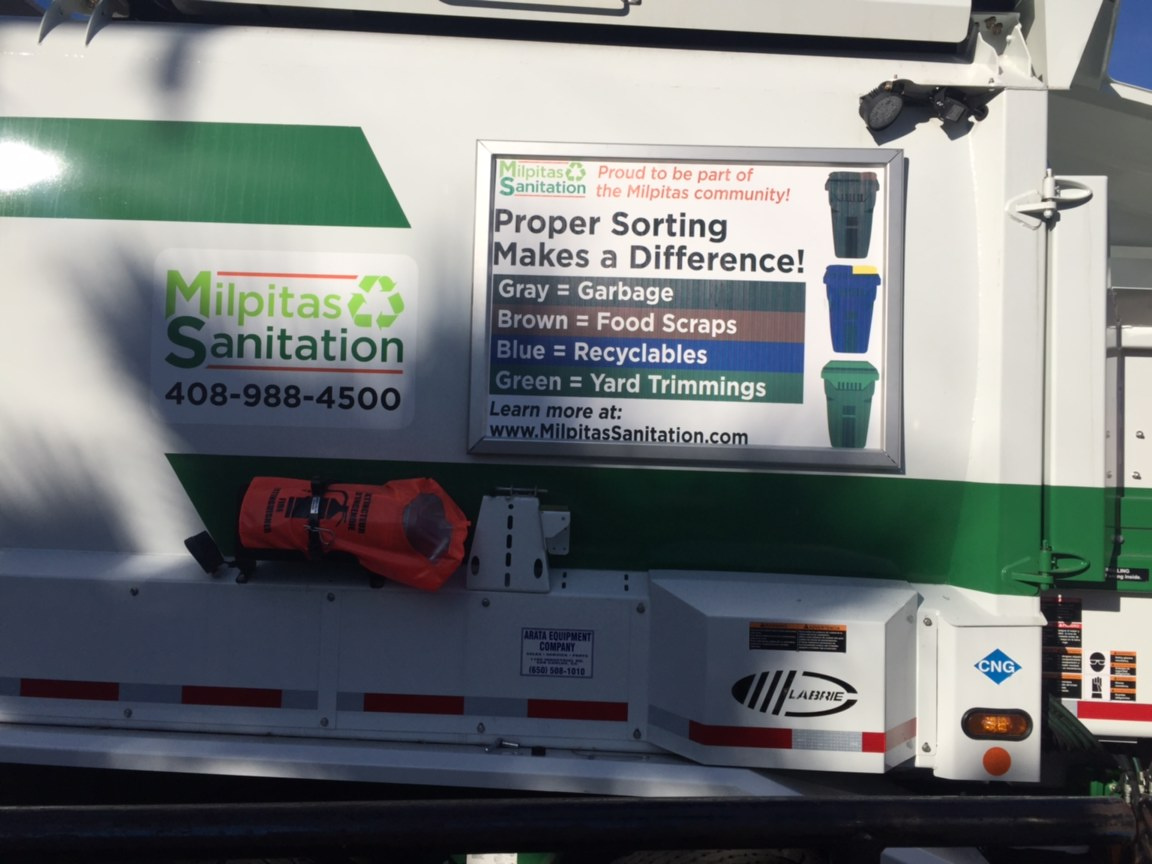

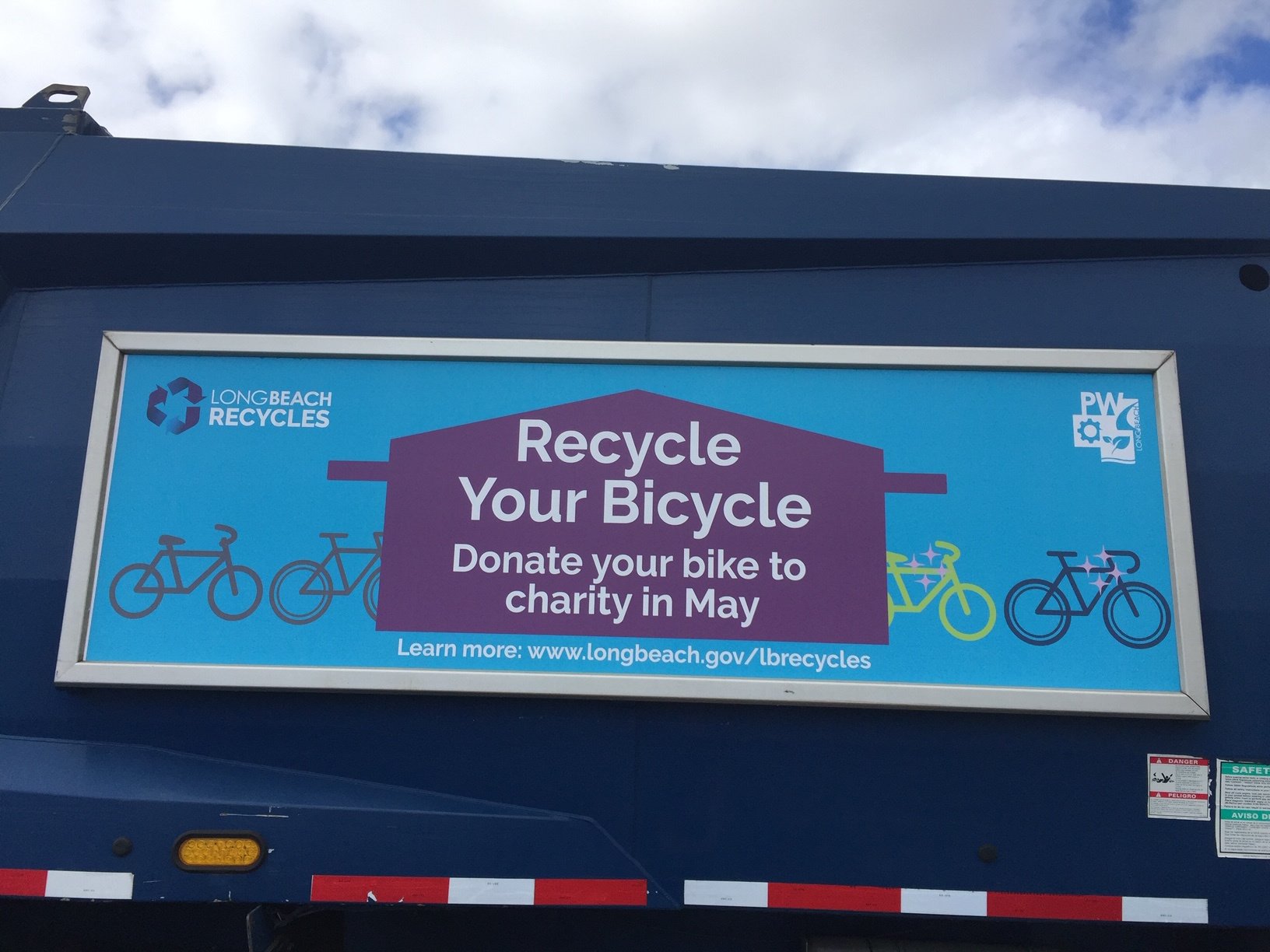

Standard Sign Frames

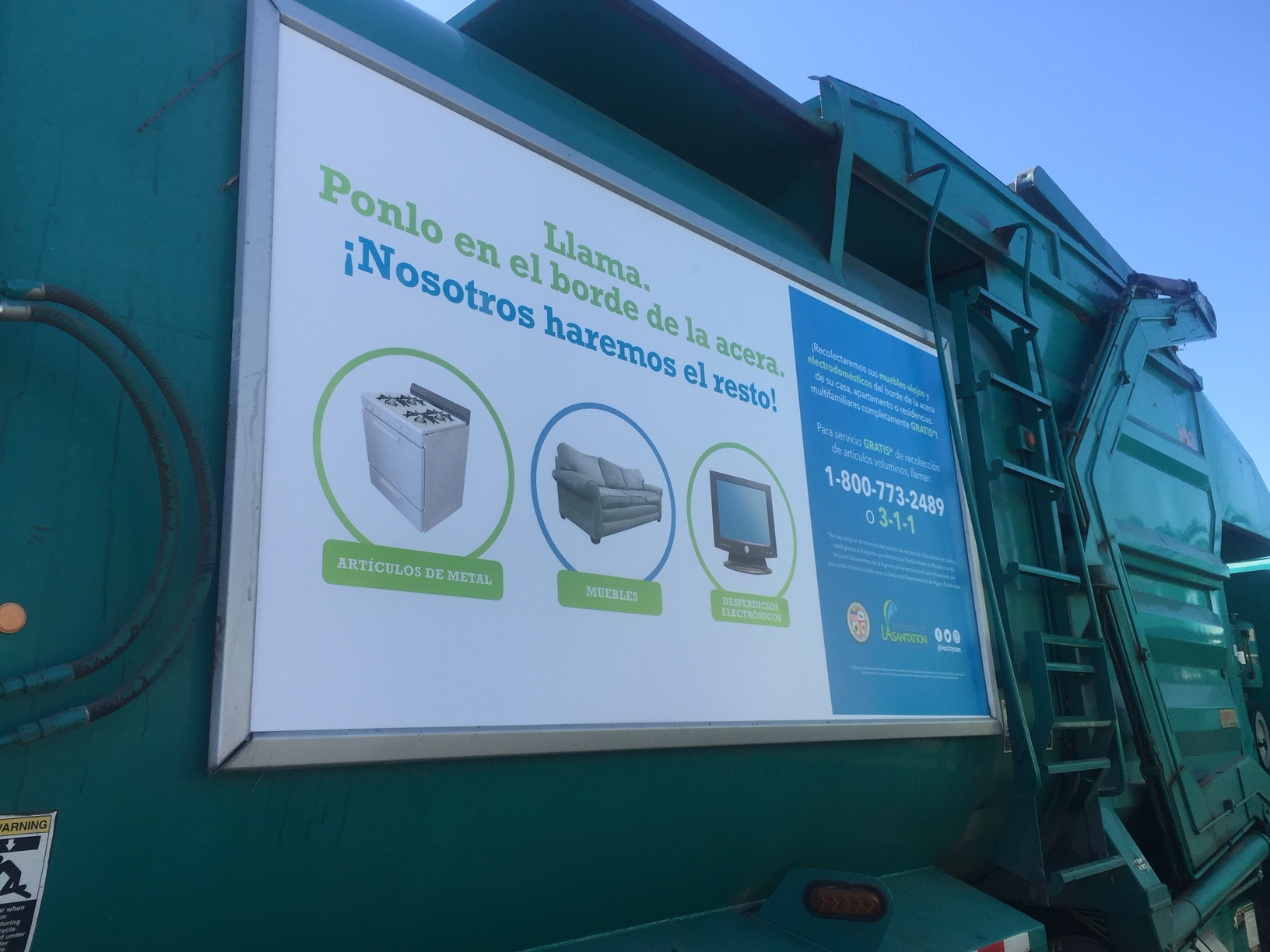

The panel inserts are silk screened on a high impact styrene material and can be screened on both sides.The system is very durable and maintenance free. We offer a wide selection of sizes to fit your particular style and size of truck. Use your fleet side displays to compliment all forms of promotions or campaigns. Your message will be seen in all the neighborhoods and areas you serve.
FRAMES:
Stock #SS315955
2-1/4" x 95-1/2" x 31-1/2" outside diameter.
Satin anodized aluminum.
.025 white aluminum backing (fabricated into frame).
Tamper proof design

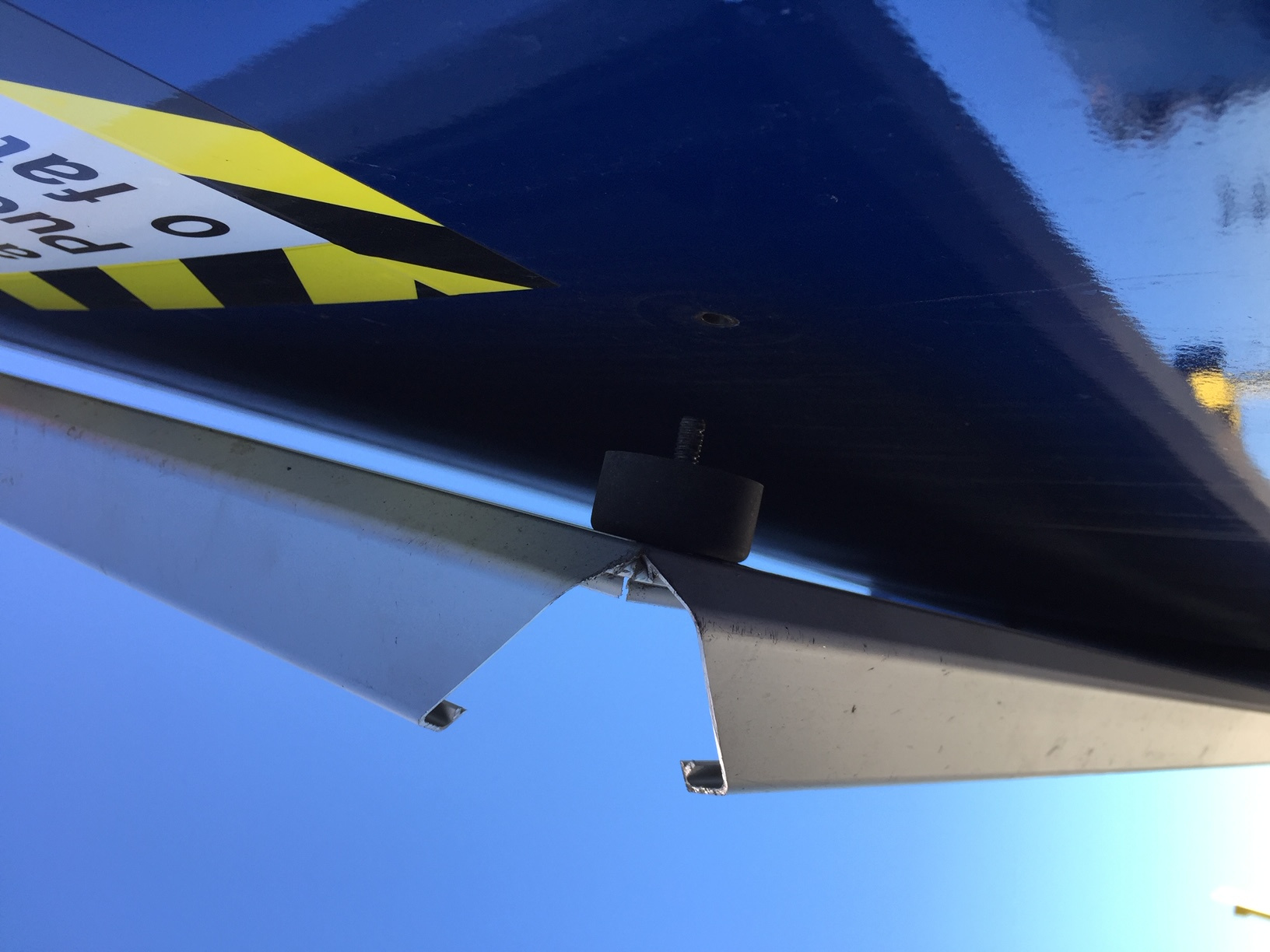

Cam-over (stainless steel) spring design
Aluminum extrusion .045 anodized alloy 6463-T6, ASTM A229-91.
PRINTED PANEL INSERTS:
.060 high impact styrene (dependant on climate, other materials available).
UV inhibitors incorporated into Panels and Inks.
Panel size 29-3/16" x 93-3/16" outside diameter
Live area 27" x 91"
FRAME INSTALLATION:
14 attachments per frame
